Crop Resize Settings

The Crop Resize Settings dialog enables the user to crop and/or resize the output file during the final render.

(1) Pixels Cropped. The user can enter the pixels to be cropped.  The computed final crop settings (based on aspect ratios)  are shown in the bottom line.

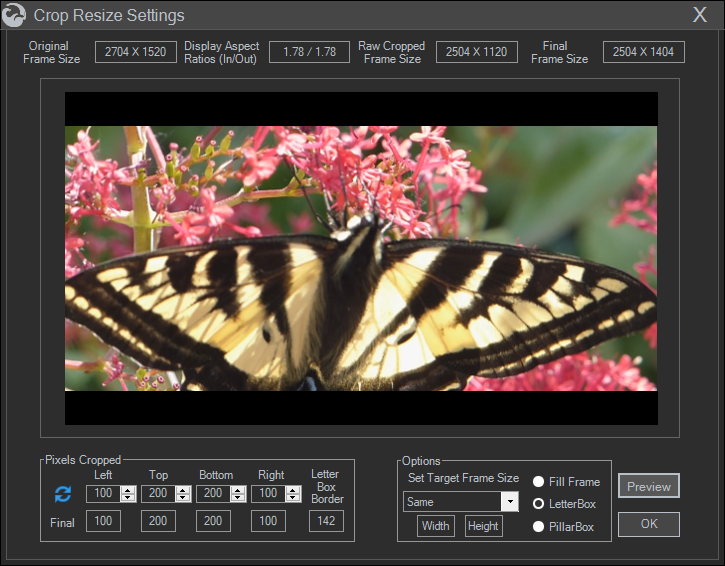

(2) Options.  A target frame size can be set from the dropdown list.  If Custom is selected, the desired frame size may be entered.  There are also options for LetterBoxing and PillarBoxing.  A preview of the final image can be seen by clicking on the Preview Button.  For Example, the above settings when Letterbox is chosen displays the following when the Preview button is clicked and held.
